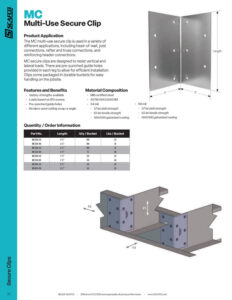

MC - Multi-Use Secure Clip

The multi-use secure clip “MC” is used in a variety of different applications including head of wall, joist connections, securing hips, rafters and trusses, reinforcing header connections, etc. Multi-use secure clip “MC” is constructed with Mill-Certified 50 ksi steel designed to resist vertical and lateral loads. Pre-punched guide holes are provided in each leg allowing for superior installation efficiency.

Features

  • Unique insert allows for 1 ½” total vertical deflection while maintaining lateral rigidity
  • Large insert piece for ease of handling and installation and easy visual alignment for maximum vertical movement
  • Meets or exceeds building code criteria

Material Composition

  • ASTM A653/A653M
  • 68 mil: yield strength: 57 ksi
  • 97 mil: yield strength: 57 ksi
  • 68 mil & 97 mil: G90 hot dipped galvanized coating
  • Slide clip material thickness = 68 mil
  • Insert material thickness = 97 mil

Allowable Loads

Model
No.
Stud Thickness Yield Strength
(ksi)
 Allowable Loads (lbs)
Mils GA F1 w/2 #10 Screws F2 w/2 #10 Screws F3 w/2 #10 Screws

MC200

33 20 33 354 354 354
43 18 33 526 526 526
54 16 50 740 740 740
68 14 50 740 740 740
97 12 50 740 740 740



Model
No.

Stud Thickness Yield Strength (ksi)  Allowable Loads (lbs)
Mils GA F1 w/2 #10 Screws F1 w/3 #10 Screws F2 w/2 #10 Screws F2 w/3 #10 Screws F3 w/2 #10 Screws F3 w/3 #10 Screws
MC350 33 20 33 354 531 354 531 354 531
43 18 33 526 789 526 789 526 789
54 16 50 740 1110 740 1110 740 1110
68 14 50 740 1110 740 1110 740 1110
97 12 50 740 1110 740 1110 740 1110



Model
No.
Stud Thickness Yield Strength (ksi)  Allowable Loads (lbs)
Mils GA F1 w/2 #10 Screws F1 w/4 #10 Screws F1 w/5 #10 Screws F2 w/2 #10 Screws F2 w/4 #10 Screws F2 w/5 #10 Screws F3 w/2 #10 Screws F3 w/4 #10 Screws F3 w/5 #10 Screws
MC550 33 20 33 354 708 885 354 708 885 354 708 885
43 18 33 526 1052 1315 526 1052 1315 526 1052 1315
54 16 50 740 1480 1850 740 1480 1850 740 1480 1850
68 14 50 740 1480 1850 740 1480 1850 740 1480 1850
97 12 50 740 1480 1850 740 1480 1850 740 1480 1850



Model
No.

Stud Thickness Yield Strength (ksi)  Allowable Loads (lbs)
Mils GA F1 w/3 #10 Screws F1 w/5 #10 Screws F1 w/7 #10 Screws F2 w/3 #10 Screws F2 w/5 #10 Screws F2 w/7 #10 Screws F3 w/3 #10 Screws F3 w/5 #10 Screws F3 w/7 #10 Screws
MC750 33 20 33 531 885 1239 531 885 1239 531 885 1239
43 18 33 789 1315 1841 789 1315 1841 789 1315 1841
54 16 50 1110 1850 2590 1110 1850 2590 1110 1850 2590
68 14 50 1110 1850 2590 1110 1850 2590 1110 1850 2590
97 12 50 1110 1850 2590 1110 1850 2590 1110 1850 2590



Model
No.
Stud Thickness Yield Strength  (ksi)  Allowable Loads (lbs)
Mils GA F1 w/3 #10 Screws F1 w/6 #10 Screws F1 w/9 #10 Screws F2 w/3 #10 Screws F2 w/6 #10 Screws F2 w/9 #10 Screws F3 w/3 #10 Screws F3 w/6 #10 Screws F3 w/9 #10 Screws

Mc950

33 20 33 531 1062 1593 531 1062 1593 531 1062 1593
43 18 33 789 1578 2367 789 1578 2367 789 1578 2367
54 16 50 1110 2220 3330 1110 2220 3330 1110 2220 3330
68 14 50 1110 2220 3330 1110 2220 3330 1110 2220 3330
97 12 50 1110 2220 3330 1110 2220 3330 1110 2220 3330

Screw shear values are based on the SSMA Screw Table with the following notes:

  1. The allowable loads are based on the steel properties of the members being connected, per NASPEC with 2004 supplements.
  2. The nominal strength of the screw must be at least 3.75 times the allowable loads.
  3. Values include a 3.0 factor of safety.
  4. Penetration of screws through joined materials should not be less than 3 exposed  threads. Screws should be installed and tightened in accordance with the screw manufacturer’s recommendations.
  5. Allowable loads indicated on the table(s) are for force in single direction only. If more than one force is applied to the connection, the designer shall provide the combined forces check as required by NASPEC with 2004 supplements.
↑ Top

Quantity / Order Information

  Material Thickness Length Qty
/Bucket
Lbs
/Bucket
Buckets
/Skid
Lbs
/Skid
Model No. Mils Gauge
MC200-54 54 16 2” 250 45 40 1840
MC200-68 68 14 2” 200 46 40 1880
MC200-97 97 12 2” 150 50 40 2040
MC350-54 54 16 3 ½” 150 48 40 1960
MC350-68 68 14 3 ½” 100 40 40 1640
MC350-97 97 12 3 ½” 100 58 40 2360
MC550-54 54 16 5 ½” 100 50 40 2040
MC550-68 68 14 5 ½” 75 48 40 1960
MC550-97 97 12 5 ½” 50 46 40 1880
MC750-54 54 16 7 ½” 50 35 40 1440
MC750-68 68 14 7 ½” 50 44 40 1800
MC750-97 97 12 7 ½” 35 44 40 1800
MC950-54 54 16 9 ½” 50 44 40 1800
MC950-68 68 14 9 ½” 50 55 40 2240
